Your first promotion

Step 2 of 2 — you have a running instance from step 1. This page puts it in its real place: between the registries where content already lives and the zone that consumes it. You will pin one public image in a recipe, sign the recipe, publish it to a cookbook, declare the zone’s desired state, let your instance promote it — and finish with a docker pull from the zone registry. Everything below uses ordinary user tooling — nothing from the source tree.

You need: the tobby binary and the tobby.yaml from step 1, plus docker, cosign and curl. The image comes from Docker Hub; the only thing you stand up yourself is a throwaway cookbook registry on loopback.

The cast

Piece	Role
docker.io	The upstream registry. The image already lives there; nothing is pushed to it.
A cookbook registry (:5001)	An ordinary OCI registry holding your signed recipe. Any registry you can push to works — here, a throwaway local one.
Your instance (:8080)	The one from step 1: secured, with a trust key and a Retriever. It does the promoting.
A cosign key pair	Signs the recipe. The public key becomes your instance’s trust root.

1. A cookbook registry

Recipes are published into a cookbook: an ordinary OCI repository, on any registry you can push to. If you already have one (ghcr.io, Harbor, …), use it and adapt the addresses below. For the walkthrough, a throwaway registry on loopback does fine:

docker run -d --rm --name cookbook -p 5001:5000 registry:2

The host port is 5001, not 5000: on macOS the AirPlay receiver squats port 5000 and answers 403 in the registry’s place — a classic trap of local-registry tutorials.

2. Pin the image

A recipe names content by digest, never just by tag. Read the digest that alpine:3.22.1 resolves to today:

docker buildx imagetools inspect docker.io/library/alpine:3.22.1

The first lines print Digest: sha256:… — keep that digest, the recipe pins it.

3. Write the recipe

A recipe describes one coherent delivery. A cooked recipe — the only kind a cookbook publishes — pins every ingredient by digest, so one signature attests the exact bytes of the whole delivery. Write alpine.yaml, with the digest from the previous step:

apiVersion: recipe.tobby.dev/v1alpha1
kind: Recipe

metadata:
  name: alpine
  version: 3.22.1
  description: First promotion — one pinned image

spec:
  ingredients:
    - name: alpine
      kind: ContainerImage
      ref: docker.io/library/alpine   # nominal reference, no tag
      version: 3.22.1
      digest: sha256:<the digest imagetools printed>

Concepts — recipes, cookbooks, retrievers — are covered in Understand recipes.

4. Publish and sign it

tobby recipe push publishes the recipe as an OCI artifact after checking it: a document that is not a valid recipe, not fully pinned, or already published with different content is refused. The throwaway registry speaks plain HTTP, which needs an explicit per-host opt-in:

export TOBBY_REGISTRIES_INSECURE=127.0.0.1:5001
tobby recipe push alpine.yaml 127.0.0.1:5001/cookbook/alpine:3.22.1

The published digest goes to stdout, ready for signing. Signing stays outside Tobby — it never holds a private key:

cosign generate-key-pair
cosign sign --key cosign.key --yes --allow-insecure-registry \
  --use-signing-config=false --tlog-upload=false \
  "127.0.0.1:5001/cookbook/alpine@<the digest recipe push printed>"

The two flags --use-signing-config=false --tlog-upload=false keep the signature verifiable offline: without them, cosign 3.x publishes to the public transparency log — a network call a restricted-zone signer should not make, and a lookup the destination could not perform anyway.

5. Declare the zone’s desired state

A Retriever names what the zone should contain. Write retriever.yaml:

apiVersion: recipe.tobby.dev/v1alpha1
kind: Retriever

metadata:
  name: demo-zone

spec:
  cookbook: 127.0.0.1:5001/cookbook
  recipes:
    - name: alpine
      version: "3.22.1"

An exact version is taken at its word; version constraints (6.x, ~0.16.1) resolve against the cookbook at each synchronization, so a patch release lands by publishing it — no file to edit.

6. Point your instance at it

Stop the instance from step 1 with Ctrl-C — shutdown is graceful — and add three things to its tobby.yaml: the Retriever, the trust root, and the plain-HTTP opt-in for the throwaway registry:

retriever:
  source: ./retriever.yaml   # a file, an https:// URL, or an OCI reference

trust:
  roots:
    - name: demo-signing-key
      keyFile: ./cosign.pub

registries:
  insecure: ["127.0.0.1:5001"]

Then restart:

tobby serve --config ./tobby.yaml

7. Promote

In passthrough mode the instance reconciles on its own schedule (every 15 minutes by default). Trigger a cycle now instead: the Recipes screen has a synchronize action, or from the command line:

curl -u admin -X POST http://localhost:8080/api/v1/sync

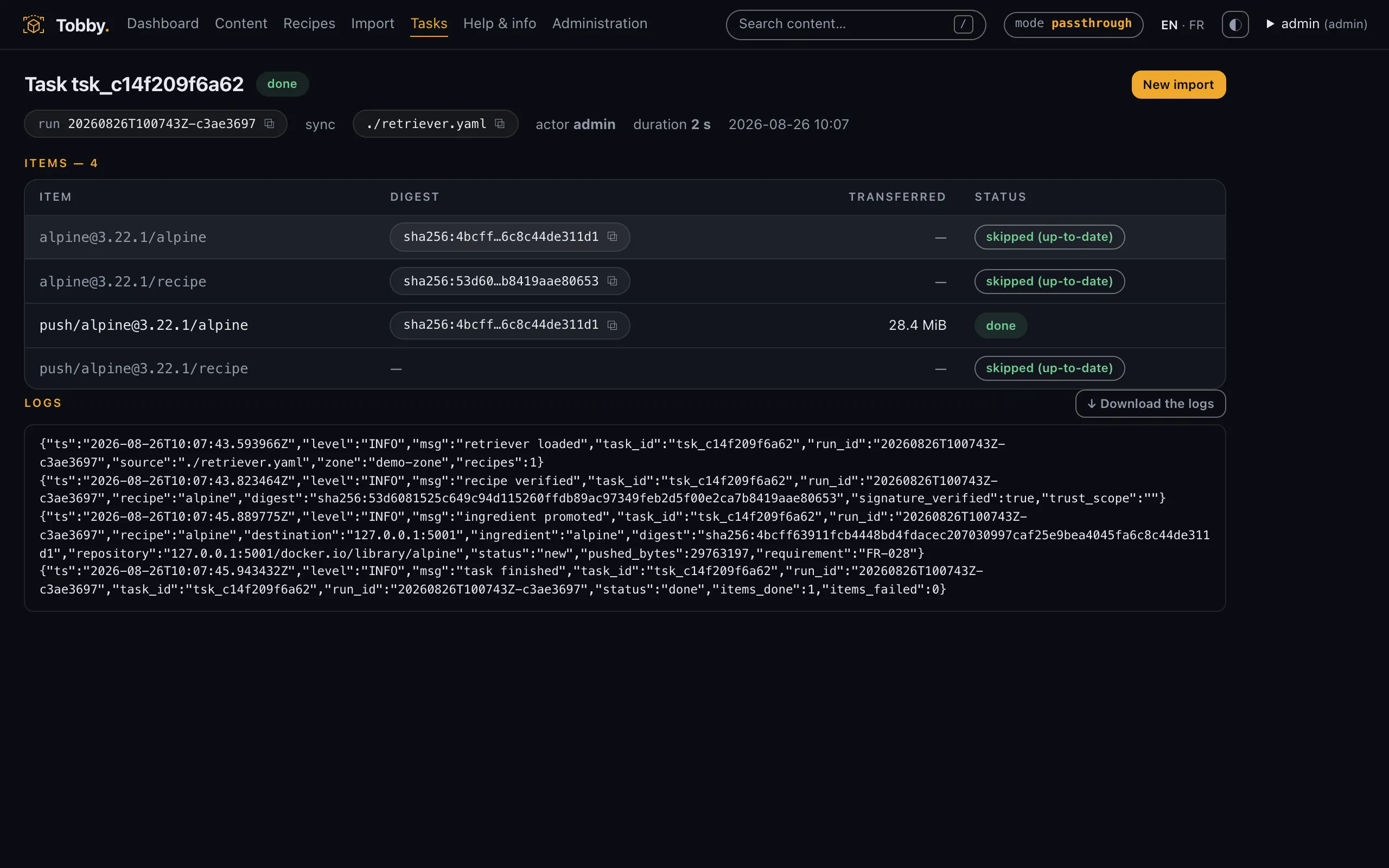

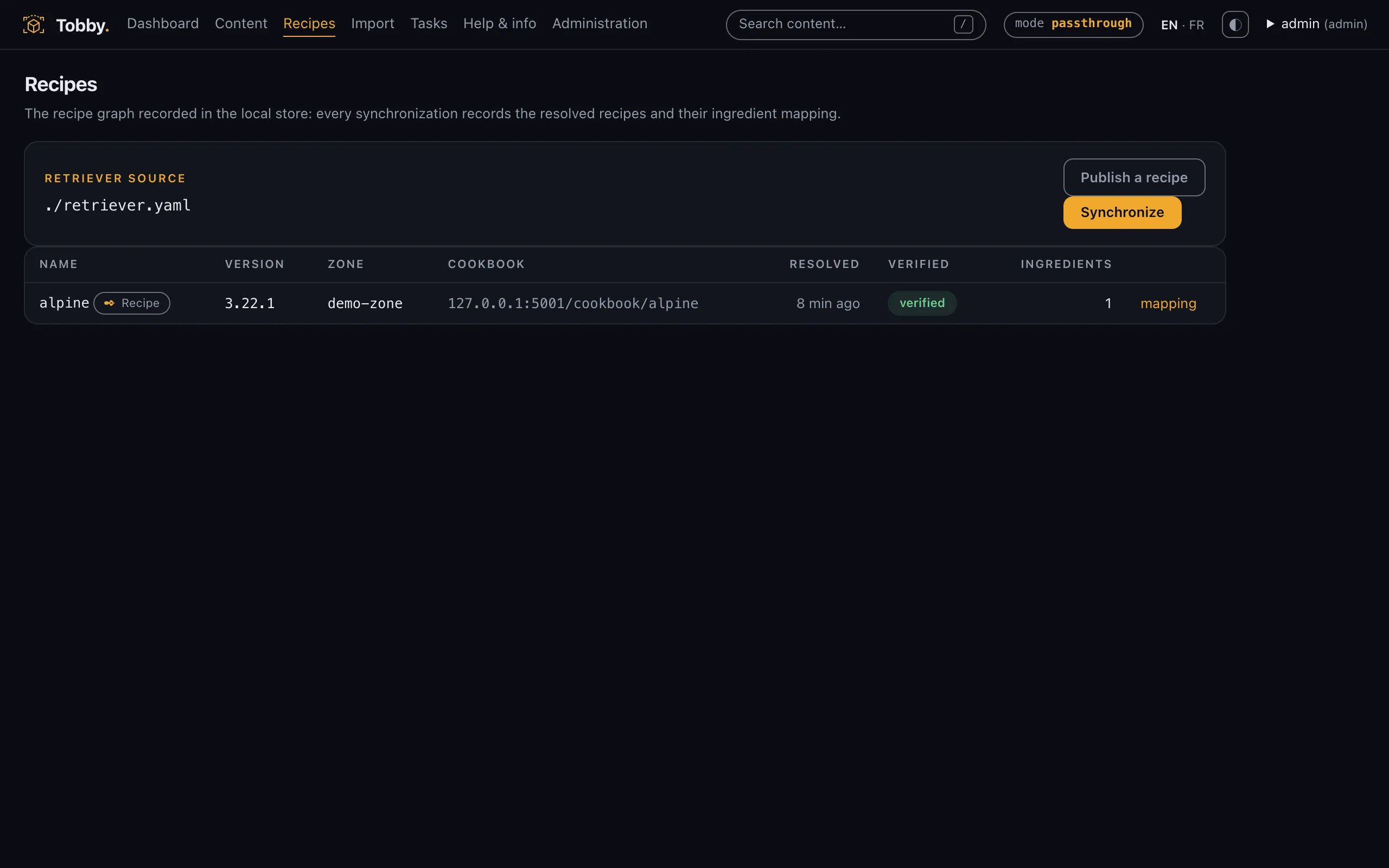

Watch the Tasks screen: the synchronization resolves the Retriever, fetches the recipe from the cookbook, verifies its cosign signature against your trust root, then pulls the image straight from docker.io and checks it against the pinned digest — transferring only what the zone is missing. The Recipes screen then shows the recipe, its resolved version and its verification verdict.

Re-run the sync: it completes without transferring anything — the zone already matches its desired state.

8. Pull from the zone registry

Your instance’s embedded registry now serves the promoted content. Docker authenticates with the same account the interface uses:

docker login 127.0.0.1:8080    # the account created by quickstart
docker pull 127.0.0.1:8080/docker.io/library/alpine:3.22.1

If your Docker daemon runs inside a VM (Rancher Desktop, some Colima setups), its 127.0.0.1 is the VM, not your machine — use your host’s LAN address in both commands instead.

The pull succeeds, digest intact: the image was carried, verified, and served — never rewritten, never re-signed. The path spells out where the content came from; why that matters, and how to wire real clients (containerd mirrors, GitOps), is in Connect your clients.

Behind a corporate proxy?

The scenario replays as-is on a locked-down workstation: the image fetch from docker.io is Tobby’s only outbound call, and Tobby’s outbound traffic is configured once for the whole instance — authenticated proxy, private PKI included. See Enterprise networks.

What you just did

The stage was small, but nothing was simulated: a signed recipe in a cookbook, a zone declaring its desired state, a promotion that verifies everything before serving it. Production only changes the addresses — the cookbook moves to a registry your qualification process publishes to, the Retriever is published as an OCI artifact, the keys come from that same process.

Lab trick: a second Tobby as a stand-in upstream

This works because a Tobby instance exposes a standard OCI registry: a second, throwaway instance can play both upstream roles at once — image source and cookbook — which is a clever way to replay this whole scenario offline, without touching any real registry. It is not Tobby’s normal place in an architecture; its place is the one on the diagram above.

Start the stand-in with authentication explicitly disabled (a loud, audited exception — fine for a stage prop on loopback, never for an instance that matters):

TOBBY_MODE=passthrough TOBBY_AUTH_DISABLED=true \
TOBBY_SERVER_ADDR=127.0.0.1:8092 TOBBY_STORAGE_ROOT=./upstream \
  tobby serve

Ordinary tools push to its embedded registry, under the path that preserves the origin — docker push prints the digest your recipe then pins:

docker pull docker.io/library/alpine:3.22.1
docker tag docker.io/library/alpine:3.22.1 127.0.0.1:8092/docker.io/library/alpine:3.22.1
docker push 127.0.0.1:8092/docker.io/library/alpine:3.22.1

Adapt the recipe: pin the digest docker push printed — what you pushed is a single-platform manifest, so its digest differs from the origin index’s. Publish and sign it against 127.0.0.1:8092/cookbook/alpine:3.22.1 exactly as above, point the Retriever’s cookbook there, and replace the registries block of your tobby.yaml with:

registries:
  insecure: ["127.0.0.1:8092"]
  substitutions:
    "docker.io": "127.0.0.1:8092"

The substitution is the interesting part: the recipe keeps saying docker.io/library/alpine, and only the address actually contacted changes. That is exactly how real zones chain one Tobby behind another, recipes unmodified — see Retriever and cascade.

Where next

• Connected zones (passthrough) — the delivered use case, run for real: architecture and continuous promotion, then Deploy on Kubernetes or a VM.
• Isolated zones (air-gap) — the same promotion carried on removable media: the media journey.
• Write your own recipes — the reasoning behind an ingredient list, and the pitfalls: write, publish and sign.
• Security reader? — the model behind what you just watched, on one page: the security one-pager.
